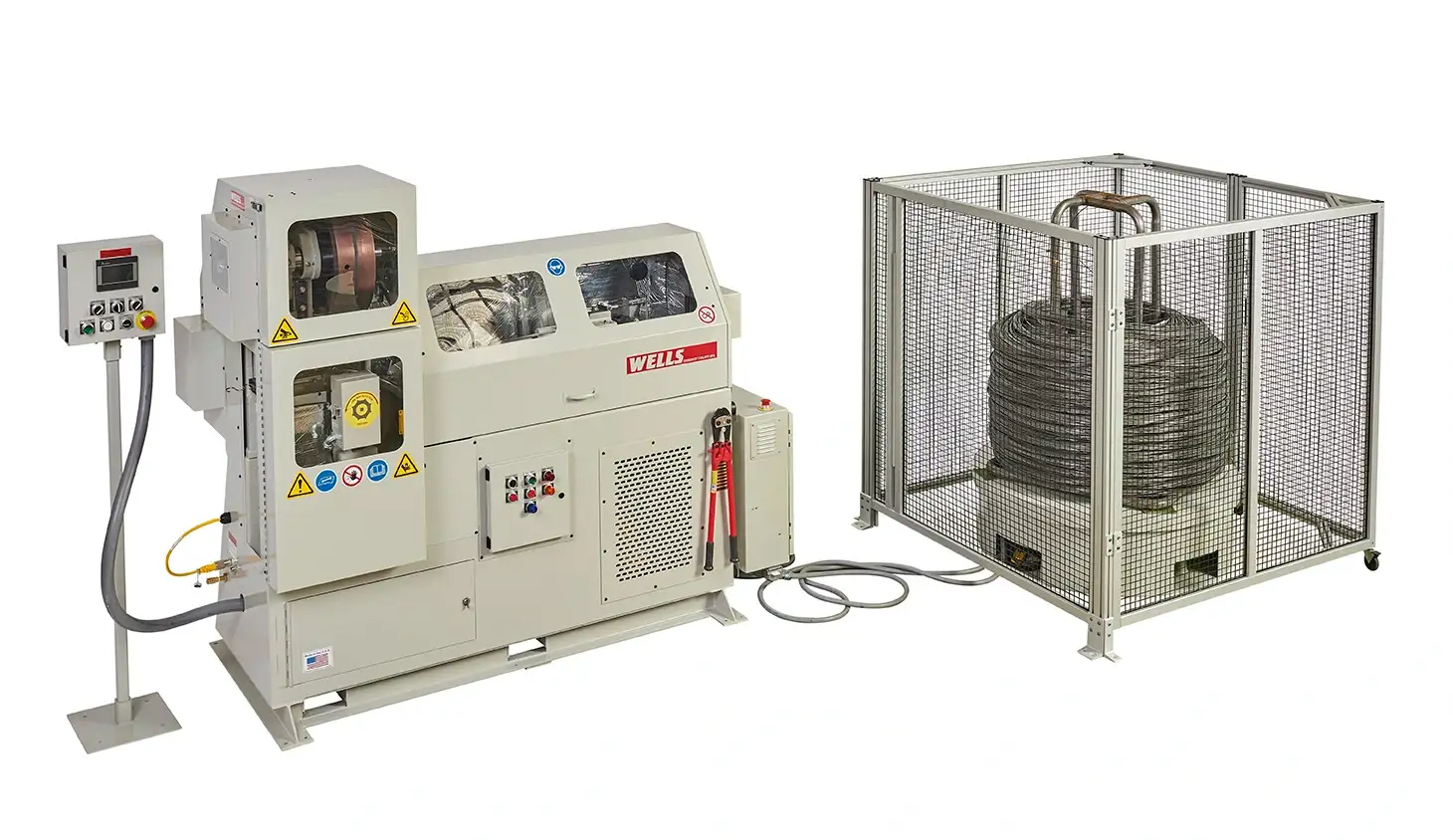

Wells Zig Zag SW 200

Produces high-quality zig zag springs with exceptional speed and flexibility for modern mattress and upholstery manufacturing. Designed for manufacturers looking for efficient, low-maintenance production with reliable output quality.

Wells zig zag sw 200

Unparalleled Speed & Flexibility

The SW 200 features a low-maintenance two-bolt forming system and requires the synchronized wire reel SW150 for operation. Variable speed control and compatible stackers, nesters, and roll accumulation solutions allow flexible production for different spring formats and output requirements.

Depending on the configuration, the SW 200 can be adapted to different production environments and output demands, ensuring stable operation across varying wire sizes and spring geometries. Its modular setup supports efficient integration into existing production lines.

User-friendly operator control station for intuitive handling
Infinite cut-off adjustment for flexible production settings
Air clutch system reduces tooling wear and breakage
Low-maintenance oscillating forming system with two-pin design
Produces all zig-zag formats and curved spring shapes
Compatible with a wide range of standard and specialized end treatments
CE-compliant machine design
Electrical specifications customizable to customer requirements

Power:
- max. 7.5 kW machine power
- max. 9.6 kW incl. payoff reel
Air: 0.007 cubic meters/ min. at 6.2 bar (.24 cubic feet per minute at 90 psi)

Shipping dimensions

Machine weight: 1,225 kg (2,700 lbs); crated machine: 1,360 kg (3,000 lbs)
Reel weight: 317 kg (700 lbs); crated reel: 386 kg (850 lbs)
Machine size: 295 x 133 x 206 cm (116″x52″x81″)
Reel size: 152 x 152 x 90 cm 49″x49″x33″)

Reel capacity: max. 1,350 kg (3,000 lbs)

- Wire gauge: 2.3 mm (.091 in.) to 4.3 mm (.169 in.)
Available standard product formats
- ZZ (Regular Loop): 48 mm (1.8 in.) wide, 19 mm (.75 in.) pitch, 203 (8.00 in.) diameter
- XL (Medium Loop): 51 mm (2.00 in.) wide, 30 mm (1.18 in.) pitch, 235 (9.25 in.) diameter
- SL (Large Loop): 76 mm (3.00 in.) wide, 51 mm (2.00 in.) pitch, 381 (15.00 in.) diameter
